FACOM DX.TSCANPB - Quick Brake Disc And Tyre Wear Analyser
Features
Connected device for optimised workshop reception of a vehicle
SCANDIAG® provides precise measurement of the wear on discs and tyres using a combination of laser and camera technology, and allows to print out or send by email or text message a report of these two components
Tool fitted with a rechargeable lithium battery, offering some 500 measurements between charges (around 60 vehicles)
The report details the wear measurements by means of various graphics that are clear and comprehensible
Easy to use and ergonomically designed, SCANDIAG® lets you conduct rapid inspection of brake discs and tyres without removing the wheels in the vast majority of cases
This equipment is supplied with intuitive software*, you can choose to test - discs only, tyres only, both at once (Fast Check)
External Power Source Input: 100/240 VCA
External Power Source Type: USB, Mini-B
Input: 5/0.5 VCC/ACC
Internal battery type: Li-Ion
Internal Battery Capacity/Voltage: 0.620/3.7 Ahr/VCC
Emission Limit/Laser Classification - 3R
Built-in Bluetooth® module
Operating Temperature - 0 – 40 °C
Storage Temperature -20 – 60 ° C
Complies with Directive 2014/53/EU
CE compliant - on USB flash drive or https://www.facom.com/services/user-manuals/User-Manuals.html

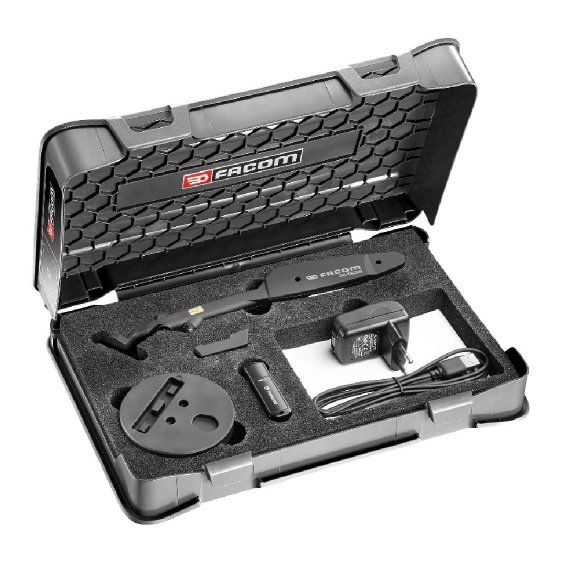

Supplied in plastic case BP.MBOXM and foam tray
Dimensions(LxWxH)
330x215x60mm
